Menşe yeri: | Çin |
Marka adı: | Dingyu/ DY SCAN |
Sertifika: | CE, ROHS, FCC, IEC, FDA |
Model numarası: | DE2100 |
Min sipariş miktarı: | 1 |
---|---|
Fiyat: | Negotiate |
Teslim süresi: | 3-7 GÜN |
Ödeme koşulları: | T / T, Paypal, Alibaba |
Yetenek temini: | 10000pcs / ay |
Boyut: | Arabirim türü: | ||
---|---|---|---|
: | Güç kaynağı: | ||
Tarama tipi: | CMOS | ışık kaynağı: | |
Alan derinliği: | 25 cm / sn | Tarama modu: | |
Vurgulamak: | 2d barkod tarayıcı modülü,2d barkod modülü |
Embedded 2D Scan Engine FFC 12 Pin Pitch 0.5 Interface Type Mini Barcode Module DE2100
DE2100 is a practical embedded barcode scanner module with leading CMOS image recognition technology and intelligent image recognition system.
It can scan universal 1D 2D codes, support USB, TTL multiple interfaces, read the paper, goods, screens, other media barcodes.
Easily embedded in a variety of OEM products handheld, portable, fixed and barcode collector, etc.
Features
☆ Mini size, cost-effective,widely used in PDA, mobile payment machines.
☆ Read all mainstream 1D 2D barcodes in the market easily.
☆ High-performance processor, fast decoding. (4mil)
☆ Simple configuration, support upgrade online.

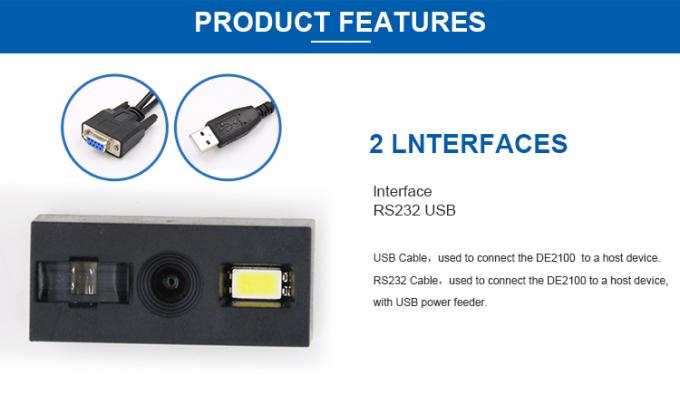

☆ Interface: USB, TTL.
☆ Support multiple systems and languages, secondary development.
Scan Type | CMOS |
Light Source | Red Light LED 625±10nm(aim), 5600K LEDs( Lighting) |
CPU | 32-bit |
Resolution | 640*480 |
Reading precision | ≥4mil/0.1mm(PCS90%,Code 39) |
Decoding speed | 25CM/S |
Depth of field | 30mm-500mm |
Scan Mode | Manual ,Continuous, Auto Sense |
Scan angle | Test Conditions:CODE39,10mil/0.25mm,PCS90% |
Pitch:±40° | |
Roll: ±360° | |
Skew: ±35° | |
Print Contrast Signal | ≥25% |
Ambient Light | Dark environment, indoor natural light |
Symbologies | 1D:UPC-A,UPC-E,EAN-8,EAN-13, Code 128,Code 39,Codabar(NW-7), GS1 Databar(RSS), etc. 2D: QR Code,PDF417,Data Matrix,etc |
Weight | ≈4g |
Dimension | (L)28mm * (W)12.5mm *(H)12.0mm |
Communication Mode | USB(USB-KBW,USB-COM),TTL |
Interface Type | FFC 12PIN Pitch 0.5 |
Power Supply | DC 3.3V@120mA(work) |
Lockers,Mobile coupons, tickets,Medical research,Mobile payment barcode scanning,Lottery machines,Self-service terminals,Queuing calling equipment,Self-service vending machines,Microcontroller developmen
t
