Name: Wireless Bluetooth Barcode Scanner 1D 2D QR CMOS 1280x800
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 15 USD
Availability: InStock

Ana sayfa Ürünler Kablosuz Barkod Tarayıcı

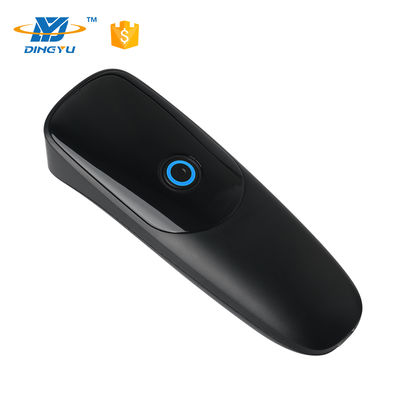

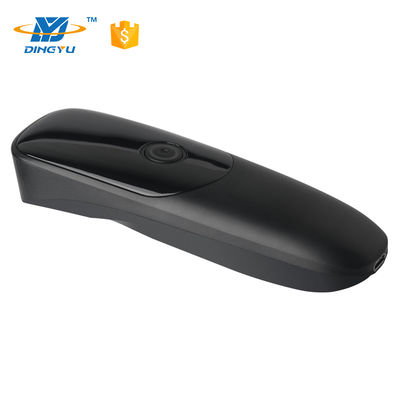

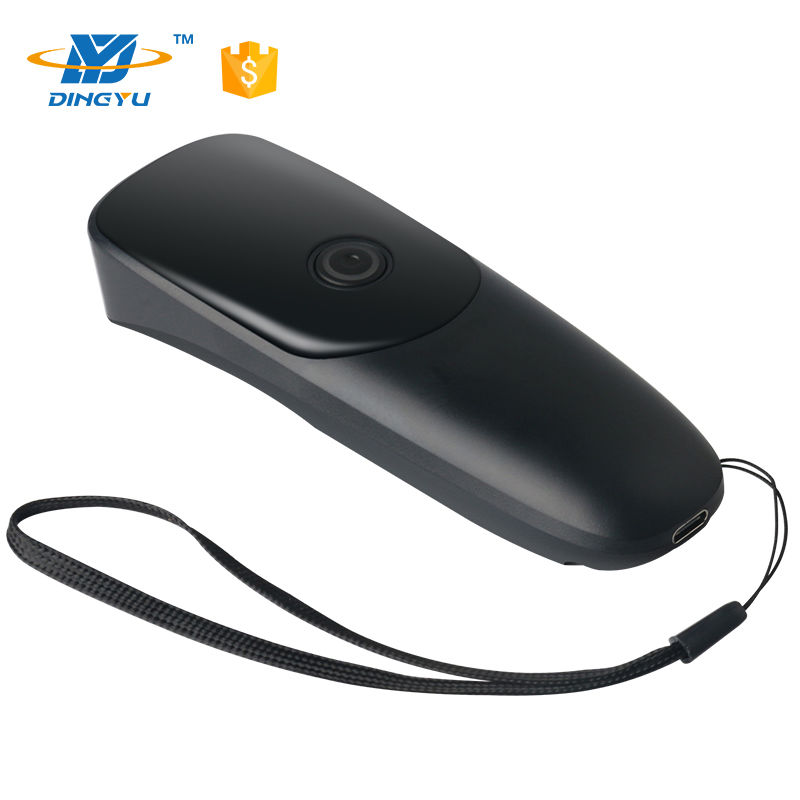

Wireless Bluetooth Barcode Scanner 1D 2D QR CMOS 1280x800

Ürün ayrıntıları:

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	15

İletişim

Detaylı ürün tanımı

Hızı Tarama:	65 cm/sn	Tarama öğesi:	CMO'lar
Kamera çözünürlüğü:	1280*800	Okuma hassasiyeti:	≥3mil/0,076mm
Alan derinliği:	30-500MM	Baskı kontrastı:	≥% 20
İşlemci:	32 bit	Akü kapasitesi:	1200mAh
Sürekli çalışma süresi:	12 saat	Şarj süresi:	3,5 saat
Kablosuz Mesafe:	Bluetooth 30m, 2.4g 100m	Depolama kapasitesi:	350KB (20.000 barkod)
Ağırlık:	≈70g	Boyutlar:	U130mm * G46.5mm * Y28.5mm
Çalışma sıcaklığı:	-20ºC ila 55ºC
Vurgulamak:	Wireless Bluetooth barcode scanner , 1D 2D QR barcode scanner , CMOS wireless barcode scanner

Portable High Performance Wireless Bluetooth Barcode Scanner Mini 1D 2D Barcode Scanner

Product Specifications

Attribute	Value
Model NO.	DI9130-2D
Interface Type	Wireless 2.4G Bluetooth
Scan Speed	65cm/S
Scan Element Type	CMOS
Camera	1280*800
Resolution	3mil Code39
Depth of Field	30-500mm
Scan Mode	Manual, Continuous, Auto Scan, Flashing
Print Contrast Signal	20%
CPU	32 Bit
Battery	1200mAh
Continuous Working Time	12h
Charging Time	3.5h
Storage	350kb (Over 20,000 Barcodes)
Dimensions	L130mm * W46.5mm * H28.5mm
Weight	≈70g (without cable)

Key Features

High-performance 1D/2D barcode scanning with CMOS technology
Dual wireless connectivity: Bluetooth (30m) and 2.4G (100m open distance)
Fast scanning at 65cm/s with 3mil resolution
Wide scanning angle (±360° roll, ±60° pitch, ±70° yaw)
Long battery life: 12 hours continuous operation
Rugged design with 1.5m drop resistance
Supports wide range of barcode symbologies including QR codes, PDF417, Data Matrix
Compact and lightweight (130×46.5×28.5mm, 70g)

Technical Parameters

Light Source: White LED (auto-adjust brightness) + Red LED aiming (525nm)

Operating Temperature: -20ºC to 55ºC

Storage Temperature: -20ºC to 60ºC

Humidity Resistance: 5% to 95% (non-condensing)

Interface: Type C

Power Supply: DC5V (47mA standby, 200mA average)

Supported Barcode Types

1D Codes: Codabar, Code39, Code128, UPC, EAN, GS1 Databar, MSI, and more

2D Codes: PDF417, QR Code, Data Matrix, Aztec, Micro QR
