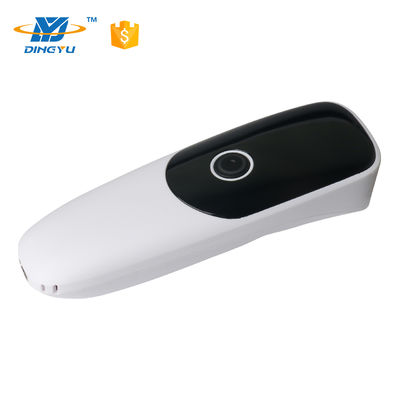

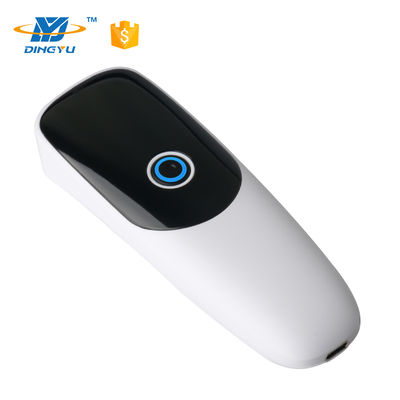

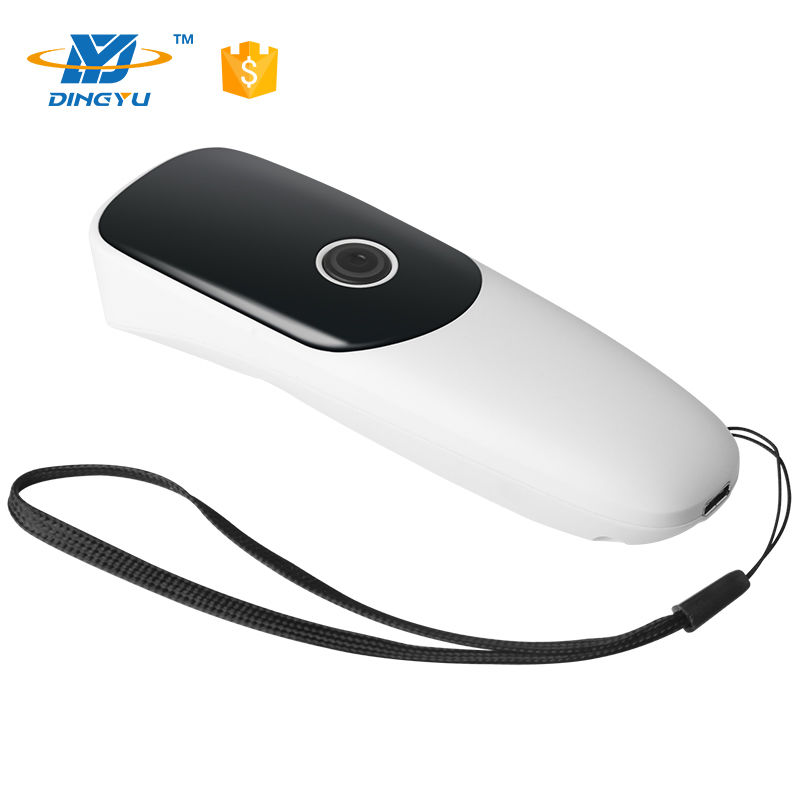

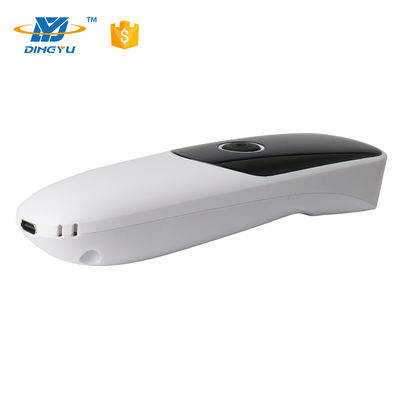

Mini 2D Wireless Bluetooth Bt Barcode Scanner Quickly Reads Android Phones
Product Attributes
| Attribute |
Value |
| Model NO. |
DI9130-2D |
| Interface Type |
Dongle Bluetooth |
| Scan Speed |
35cm/S |
| Scan Element Type |
CMOS |
| Item Name |
Bluetooth Portable 1d 2D Laser CMOS Qr Barcode Scanner |
| Depth of Field |
20-500mm |
| Scan Mode |
Manual, Auto Sense |
| Print Contrast Signal |
20% |
| Ambient Light |
Dark Environment, Indoor Natural Light |
| Symbologies |
1d and 2D |
| Weight |
70g Without Cable |
| Dimension |
L130mm * W47.5mm * H24mm |
| Interface |
Type C |
| Drop Height |
1.5m |
| Transport |
10h@125rpm |
| Reading Precision |
4mil/0.1mm |
| Battery Capacity |
1200mAh |
| Battery Charging Time |
About 3.5 Hours |
| Continuous Working Time |
8hours |
| Transport Package |
170*110*40mm |
| Specification |
170*110*40MM |
| Trademark |
DYscan |
| Origin |
China |
| HS Code |
8471900090 |
| Production Capacity |
50000 |
Product Description
Bluetooth Portable 1D 2D Laser CMOS QR Barcode Scanner Reader
The DI9130-2D is a high-performance 2D Bluetooth and wireless 2.4G barcode scanner featuring leading CMOS image recognition technology. It efficiently reads barcodes from paper, goods, screens, and other media. Ideal for manufacturing, warehouse logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory.
Technical Specifications
| Scan Type |
CMOS |
| Light Source |
White light |
| CPU |
32-bit |
| Resolution |
640*480 |
| Reading precision |
≥4mil/0.1mm(PCS90%,CODE 39) |
| Decoding speed |
35CM/S |
| Depth of field |
20-500mm |
| Scan Mode |
Manual, Auto sense |
| Scan angle |
Pitch:±60°, Roll: ±360°, Skew: ±55° |
| Print Contrast Signal |
≥20% |
| Ambient Light |
Dark environment, indoor natural light |
Supported Symbologies
- 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5 (Straight 2 of 5), Codabar (NW-7), MSI, GS1 Databar (Omnidirectional, Limited, Expanded), etc.
- 2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec, etc.
Product Images
Frequently Asked Questions
Q1: How do you ensure the high quality of your barcode scanners?
DYscan: As a professional manufacturer and developer with 18 years of field experience, we maintain strict quality control with our professional QC team and testing machines (engine age test, wire bend machine, switch life test, shock resistance test). All our barcode scanners pass CE, FCC, and ROHS certifications.
Q2: What quality control measures do you implement?
DYscan: We conduct wire bend tests for 1 million cycles, button tests for 1 million presses, and test all devices before shipment.
Q3: What is the warranty period for your barcode scanners?
DYscan: 12 months warranty.
Q4: How do you maintain stable performance?
DYscan: We implement flow line production throughout the manufacturing process. Each product undergoes at least 4 tests before delivery.
Q5: Do you offer OEM or ODM services?
DYscan: We provide OEM services including custom logos, color boxes, and user manuals. Our technical team supports ODM services.
Q6: What are your company's strengths?
DYscan: As a professional scanner manufacturer, we have specialized departments including R&D for new product development, production for manufacturing and testing, and marketing/sales with dedicated customer service.
Q7: Do I need to install drivers?
DYscan: No. Our scanners support plug-and-play functionality and are compatible with Windows, Mac OS, iOS, Linux, UNIX, and Android without requiring driver installation.
