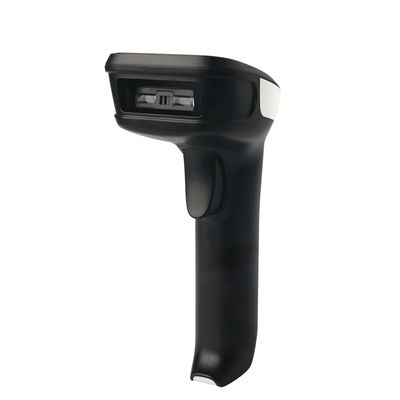

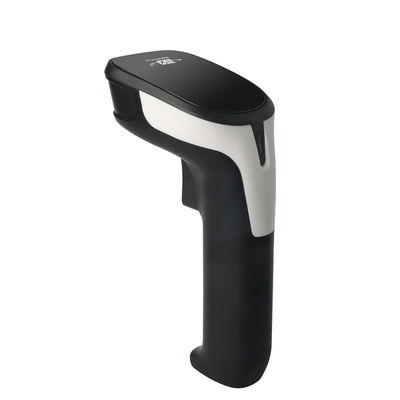

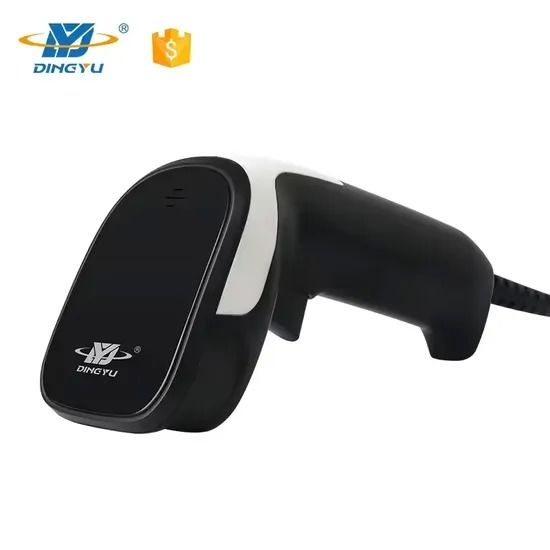

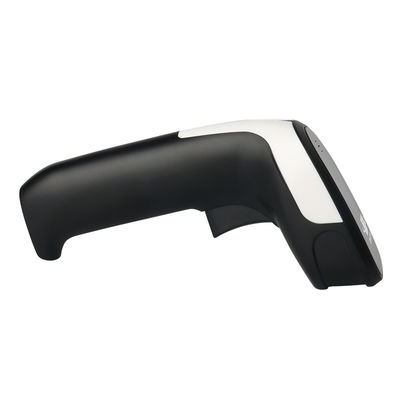

Name: DS5110 1D CCD Barcode Scanner with USB RS232 3mil Resolution
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

Ana sayfa Ürünler 1D Barkod Okuyucu

DS5110 1D CCD Barcode Scanner with USB RS232 3mil Resolution

Ürün ayrıntıları:

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	10

İletişim

Detaylı ürün tanımı

Model no.:	DS5110	Arayüz türü:	USB, Rs232
Tarama öğesi:	CCD	Kamera çözünürlüğü:	640*480
Barkod çözünürlüğü:	3mil kod39	Alan derinliği:	10-600mm
Tarama modları:	Manuel, sürekli, otomatik tarama, yanıp sönüyor	Baskı kontrastı:	% 20
İşlemci:	32 bit	Boyutlar:	U161mm * G63mm * Y80mm
Ağırlık:	147g	İletişim:	USB(USB-KBW,USB-COM),RS232
Çalışma sıcaklığı:	-20 ila 50 derece	Saklama sıcaklığı:	-40 ila 70 derece
düşme yüksekliği:	1.5m
Vurgulamak:	1D CCD barcode scanner with USB , 1D barcode scanner RS232 interface , DS5110 barcode scanner 3mil resolution

Handheld 1D Wired Scanner Barcode Reader CCD Barcode Scanner with USB RS232

High-Performance 1D Barcode Scanner

The DS5110 is a professional-grade 1D barcode scanner featuring advanced CCD image recognition technology. Designed for reliable performance across various applications, it efficiently reads barcodes from paper, products, screens, and other media surfaces.

Key Applications

Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory systems.

Technical Specifications

Parameter	Specification
Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading Precision	≥3mil/0.076mm (PCS90%, Code 39)
Decoding Speed	300 times/s
Depth of Field	10mm-600mm
Scan Modes	Manual, Continuous, Auto Sense, Flashing
Scan Angles	Pitch: ±60° \| Roll: ±30° \| Skew: ±60°
Supported Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
Physical Dimensions	161mm (L) × 63mm (W) × 80mm (H)
Weight	≈147g (without cable)
Communication Interfaces	USB (USB-KBW, USB-COM), RS232
Power Supply	DC 5V@80mA (operating)
Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 70ºC
Humidity	5% to 95% (non-condensing)
Drop Resistance	1.5m
