Automatic Fast Scanning 1D 2D Handheld Barcode Scanner with 3mil Code39 and 1.5m Cable Length

Automatic Fast Scanning 1D 2D Handheld Barcode Scanner with 3mil Code39 and 1.5m Cable Length

  • Automatic Fast Scanning 1D 2D Handheld Barcode Scanner with 3mil Code39 and 1.5m Cable Length
  • Automatic Fast Scanning 1D 2D Handheld Barcode Scanner with 3mil Code39 and 1.5m Cable Length
  • Automatic Fast Scanning 1D 2D Handheld Barcode Scanner with 3mil Code39 and 1.5m Cable Length
  • Automatic Fast Scanning 1D 2D Handheld Barcode Scanner with 3mil Code39 and 1.5m Cable Length
  • Automatic Fast Scanning 1D 2D Handheld Barcode Scanner with 3mil Code39 and 1.5m Cable Length
  • Automatic Fast Scanning 1D 2D Handheld Barcode Scanner with 3mil Code39 and 1.5m Cable Length
Automatic Fast Scanning 1D 2D Handheld Barcode Scanner with 3mil Code39 and 1.5m Cable Length
Ürün ayrıntıları:
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Fiyat: 15
İletişim
Detaylı ürün tanımı
Model no.: DS5900-2D Arayüz türü: USB
Tarama öğesi: CMO'lar Kamera çözünürlüğü: 640*480
Barkod çözünürlüğü: 3mil kod39 Alan derinliği: 30-600mm
Tarama modu: Manuel, Sürekli, Otomatik Tarama Baskı kontrastı: % 15
İşlemci: 32 bit Kablo uzunluğu: 1.5m
Ağırlık: 160g Güç kaynağı: DC 5V 200mA
Boyut: L165.5mm * W63.5mm * H92.3mm Saklama sıcaklığı: -40 ila 60 derece
düşme yüksekliği: 1.5m
Vurgulamak:

1D 2D Handheld Barcode Scanner

,

3mil Code39 Barcode Scanner

,

1.5m Cable Length QR Code Scanner

Automatic Fast Scanning with Wired USB POS Supermarket Handheld 1D 2D Barcode Reader Scanner
Automatic Fast Scanning 1D 2D Handheld Barcode Scanner with 3mil Code39 and 1.5m Cable Length 0

The DS5900-2D is a durable wired 2D handheld barcode scanner with excellent fall resistance. It efficiently reads barcodes from various surfaces including paper, goods, and digital screens. Ideal for multiple industries including manufacturing, warehousing, logistics, healthcare, retail chains, and mobile payment systems.

Key Features
  • High-performance 2D barcode scanning capability
  • Robust construction with 1.5m drop resistance
  • Wide operating temperature range (-20ºC to 55ºC)
  • Multiple scanning modes: Manual, Continuous, Auto Sense
  • Supports extensive 1D and 2D barcode symbologies
  • USB interface with 1.8m cable length
Technical Specifications
Parameter Specification
Scan Type CMOS
Light Source Red Light LED 525±10nm (aim), 5600K LED (Lighting)
CPU 32-bit
Resolution 640*480
Minimum Resolution ≥3mil/0.1mm (PCS90%, CODE 39)
Decoding Speed 65CM/S
Depth of Field 30-600mm
Scan View 41° * 31°
Scan Angle Roll: ±360°, Pitch: ±60°, Yaw: ±55°
Weight ≈160g (without cable)
Dimensions 165.5mm * 63.5mm * 92.3mm
Power Supply DC5V input, decoding current: 200mA
Environmental Specifications
Parameter Specification
Operating Temperature -20ºC to 55ºC
Storage Temperature -40ºC to 60ºC
Humidity 5% to 95% (non-condensing)
Drop Height 1.5m
Supported Symbologies
1D Barcodes

UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Codabar, MSI, GS1 Databar, China Post, Tepepen, Febraban, GS1 Composite, Japan Post

2D Barcodes

QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code

Product Images

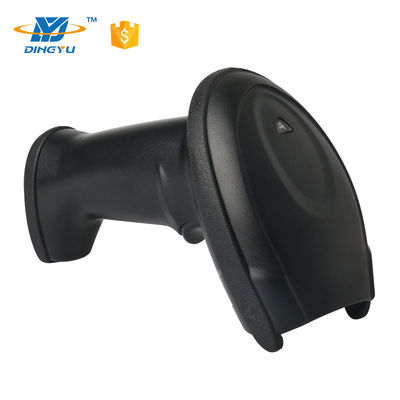

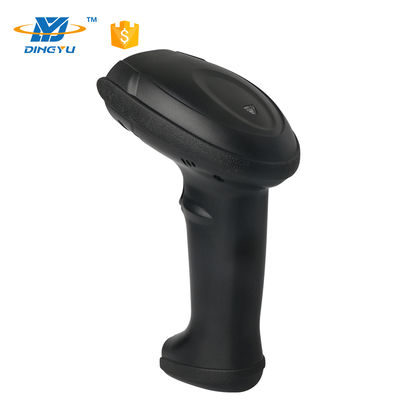

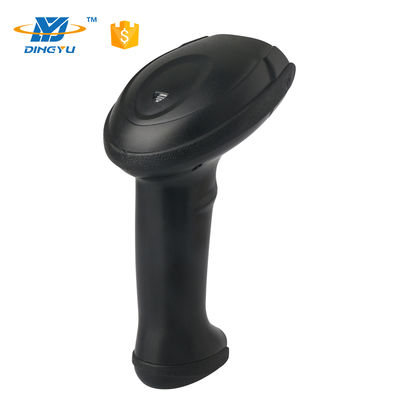

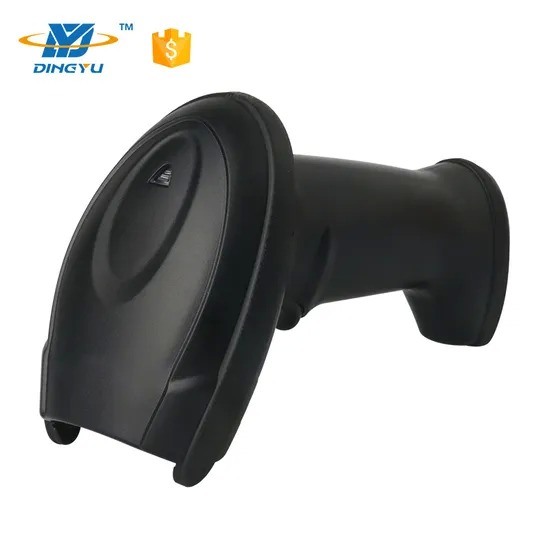

Automatic Fast Scanning 1D 2D Handheld Barcode Scanner with 3mil Code39 and 1.5m Cable Length 1 Automatic Fast Scanning 1D 2D Handheld Barcode Scanner with 3mil Code39 and 1.5m Cable Length 2 Automatic Fast Scanning 1D 2D Handheld Barcode Scanner with 3mil Code39 and 1.5m Cable Length 3 Automatic Fast Scanning 1D 2D Handheld Barcode Scanner with 3mil Code39 and 1.5m Cable Length 4
Application Scenarios

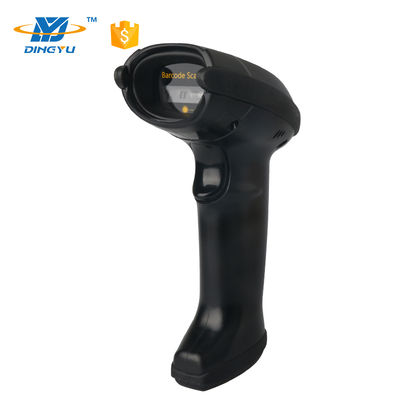

Automatic Fast Scanning 1D 2D Handheld Barcode Scanner with 3mil Code39 and 1.5m Cable Length 5
