Name: DYscan DS6530-2D Barcode Scanner 300 Scans/sec USB 1D 2D QR
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

Ana sayfa Ürünler 1D Barkod Okuyucu

DYscan DS6530-2D Barcode Scanner 300 Scans/sec USB 1D 2D QR

Ürün ayrıntıları:

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1

İletişim

Detaylı ürün tanımı

Model no.:	DS6530-2D	Arayüz türü:	USB
Hızı Tarama:	300 tarama/sn	Tarama öğesi:	CMO'lar
Çözünürlük:	1024*1280 (1.3 milyon piksel)	Okuma hassasiyeti:	≥3mil/0,076mm
kod çözme hızı:	100CM/S	Alan derinliği:	60mm ~ 1000mm
Görüş alanı:	40 ° * 30 °	Ağırlık:	290g
Boyut:	L153.2mm * W66.0mm * H110.5mm	İletişim modu:	USB, RS232
Güç kaynağı:	DC 5V@260mA	Çalışma sıcaklığı:	-20ºC ila 50ºC
Nem:	% 5 ila% 95 (yoğunlaşmayan)
Vurgulamak:	DYscan DS6530-2D barcode scanner with USB , 1D 2D QR barcode scanner 300 scans/sec , DYscan DS6530-2D high-speed barcode scanner

DS6530-2D Wired 2D Handheld Barcode Scanner

The DS6530-2D is a high-performance wired 2D handheld barcode scanner featuring advanced CMOS image recognition technology. It efficiently reads barcodes from various surfaces including paper, goods, and digital screens. Ideal for manufacturing, warehousing, logistics, healthcare, retail, mobile payments, and inventory management applications.

Key Features

Ergonomic design for comfortable extended use
Reads all mainstream 1D and 2D barcodes with ease
High-speed decoding with 32-bit processor (3mil precision)
IP65 rated for waterproof and dustproof operation
Supports multiple operating systems and languages
Ideal for supermarkets and inventory management

Technical Specifications

Performance

Scan Type	CMOS
CPU	32-bit
Resolution	1024×1280 (1.3 million pixels)
Reading precision	≥3mil/0.076mm (PCS90%, Code 39)
Decoding speed	100CM/S
Depth of field	60mm~1000mm
Scan Mode	Manual, Auto Sense
Prompt mode	LED indicator, buzzer
Field of view	40° × 30°
Scan angle	Pitch: ±60° \| Roll: ±360° \| Skew: ±55°
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light
Symbologies	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Codabar, MSI, GS1 Databar 2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec

Physical Parameters

Weight	290g (scanner only)
Dimensions	153.2mm × 66.0mm × 110.5mm
Communication Mode	USB, RS232
Interface Type	USB, DB9
Power Supply	DC 5V@260mA (operating)

Environmental Specifications

Operating temperature	-20°C to 50°C
Storage temperature	-40°C to 60°C
Humidity	5% to 95% (non-condensing)
Transport vibration Test	10H@125RPM

Included Accessories

USB Cable for connecting to host devices
RS232 Cable with USB power supply

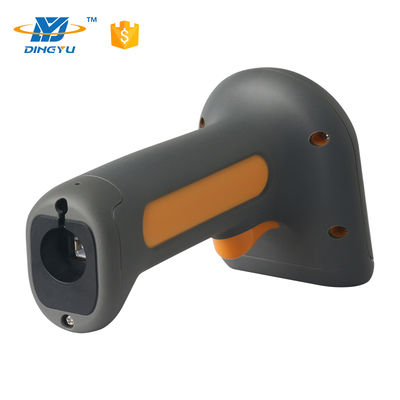

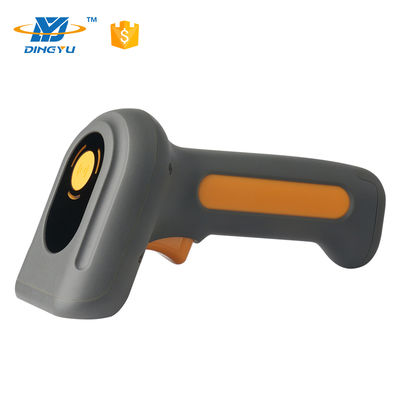

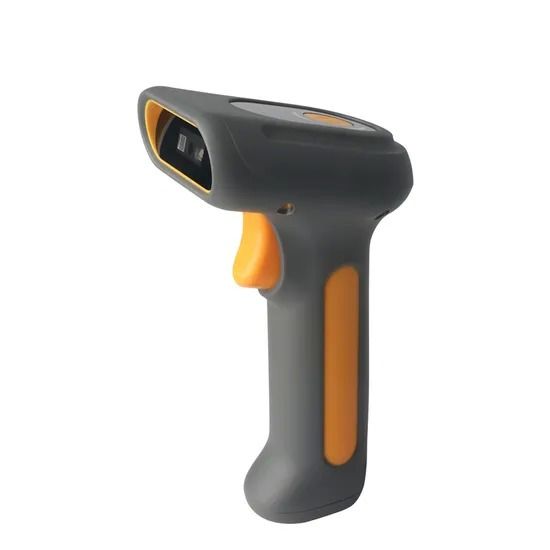

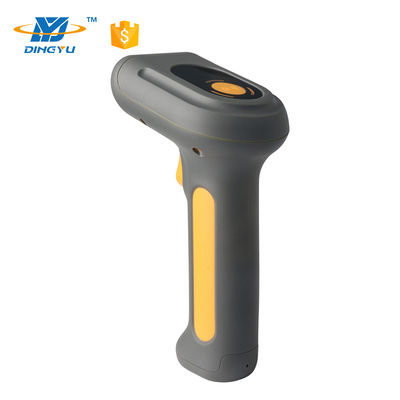

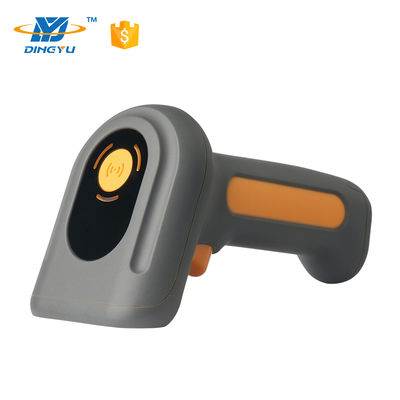

Product Images

Frequently Asked Questions

Q1: How do you ensure high quality barcode scanners?

DYscan is a professional manufacturer with 18 years of experience. Our quality control includes professional testing equipment (engine age test, wire bend machine, switch life test, shock resistance test). All scanners are CE, FCC, and ROHS certified.

Q2: What quality control measures do you implement?

We conduct 1 million wire bend tests, 1 million button press tests, and comprehensive device testing before shipment.

Q3: What is the warranty period?

12 months warranty.

Q4: How do you maintain stable performance?

We use assembly line production with at least 4 quality tests before delivery.

Q5: Do you offer OEM/ODM services?

Yes, we provide OEM services (custom logos, packaging) and ODM support with our technical team.

Q6: What are your company strengths?

We have dedicated R&D, production, and sales departments with specialized teams for each function.

Q7: Are drivers required?

No, our scanners support plug-and-play operation with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
