Name: Mini 2D Barcode Scanner Module with 4mil Resolution 640*480 Image Sensor and 32-bit CPU
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 5 USD
Availability: InStock

Ana sayfa Ürünler Barkod Tarama Motoru

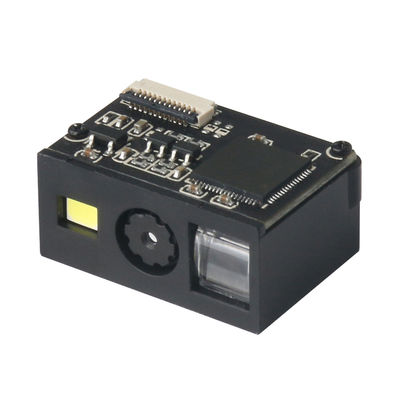

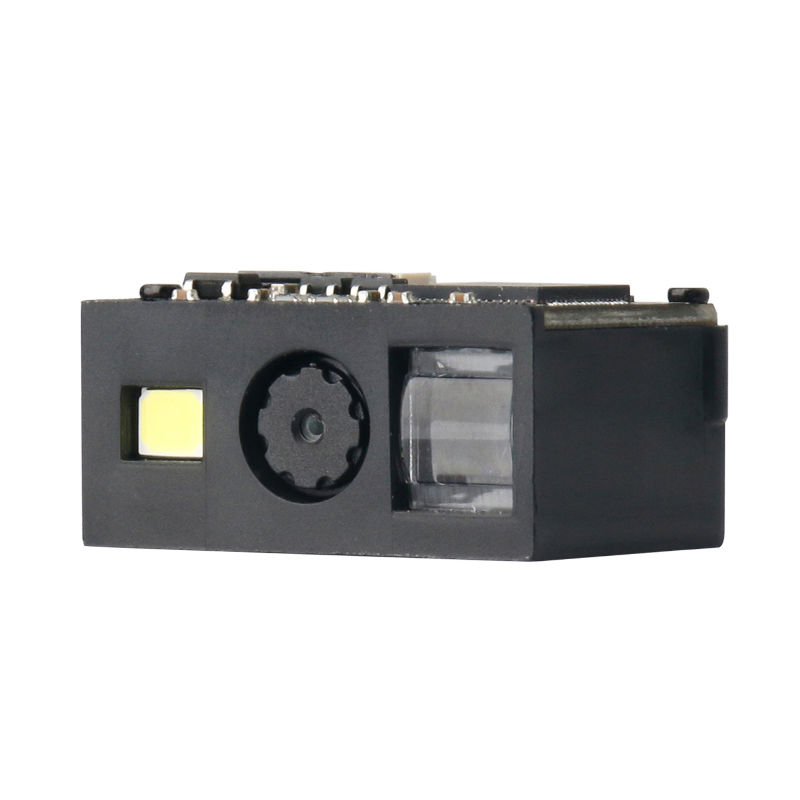

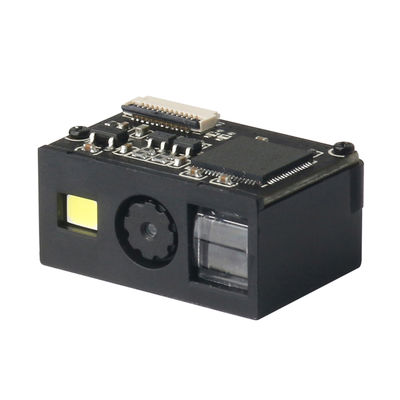

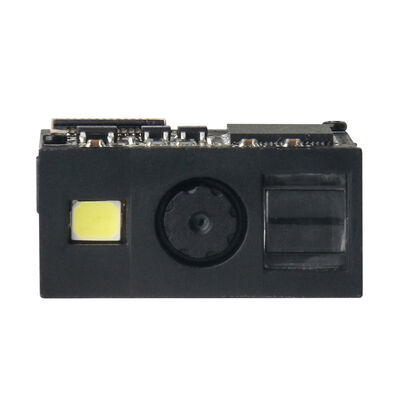

Mini 2D Barcode Scanner Module with 4mil Resolution 640*480 Image Sensor and 32-bit CPU

Ürün ayrıntıları:

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	5

İletişim

Detaylı ürün tanımı

Model Numarası:	DE2106	Arayüz Türü:	USB
Hızı Tarama:	25CM/S	Tarama öğesi:	CMO'lar
Çözünürlük:	4mil	Görüntü sensörü:	640*480
Tarama modu:	Otomatik tarama, sürekli	Baskı kontrastı:	% 25
Ağırlık:	3.5g	Güç Kaynağı:	DC 3.3V, 150mA Çalışma
Boyutlar:	22 mm U * 14,6 mm G * 11,3 mm Y	düşme yüksekliği:	1.2m
Çalışma sıcaklığı.:	-20ºC ila 50ºC	Depolama sıcaklığı.:	-40ºC ila 60ºC
Nem:	% 5 ila% 95 (yoğunlaşmayan)
Vurgulamak:	4mil Resolution Barcode Scanner Module , 640*480 Image Sensor 2D Barcode Scanner , 32-bit CPU Embedded Barcode Scanner

Barcode Scanner Reader USB TTL Mini Embedded 2D Barcode Scanner Module

The DE2106 is a compact embedded barcode scanner module featuring advanced CMOS image recognition technology and intelligent image processing system. This versatile scanner supports both 1D and 2D barcodes across various media types including paper, products, and digital screens.

Key Features

Compact design ideal for wireless machines and self-service terminals
Reads all mainstream 1D and 2D barcodes (minimum 4mil resolution)
High brightness scanning capability for low-light environments
Dual interface support: USB and TTL
Low power consumption with DC 3.3V operation
Compatible with multiple systems and languages for easy integration

Technical Specifications

Scan Type	CMOS
Light Source	White light
CPU	32-bit
Resolution	640×480
Reading Precision	≥4mil/0.1mm (PCS90%, CODE 39)
Decoding Speed	25CM/S
Scan View	36°×28°
Scan Modes	Manual, Auto sense, Continuous
Scan Angles	Pitch: ±50°, Roll: ±360°, Skew: ±50°

Supported Symbologies

1D Barcodes	UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA25), Codabar (NW-7)
2D Barcodes	QR Code, Micro QR Code, Data Matrix, PDF417
