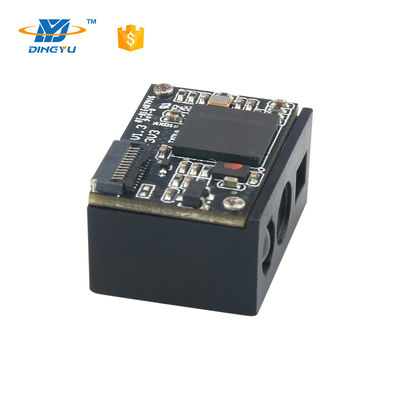

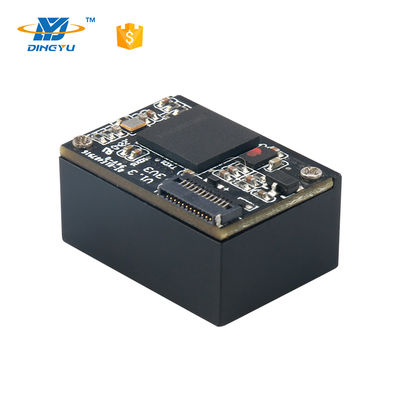

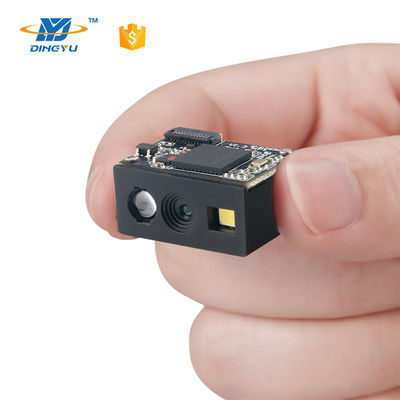

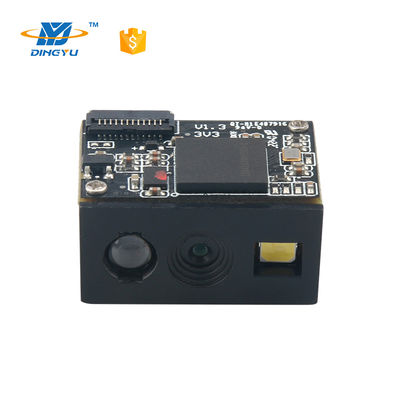

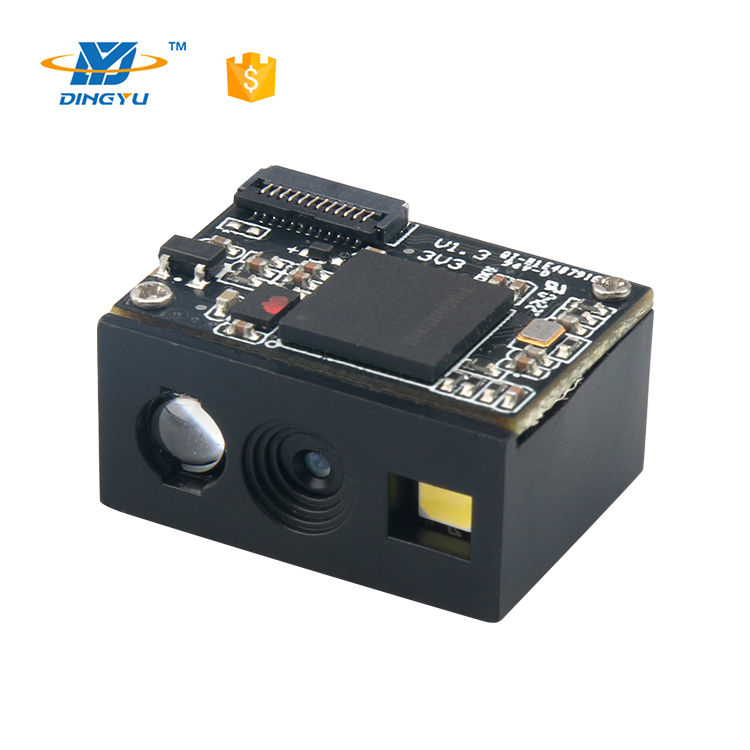

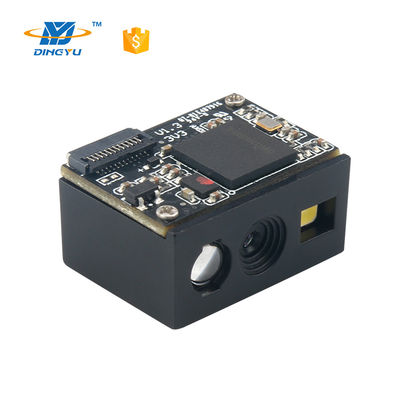

Compact Barcode Scan Engine with 1 Year Warranty 1.2m Drop Height and 3.5g Weight for Reliable Scanning

Compact Barcode Scan Engine with 1 Year Warranty 1.2m Drop Height and 3.5g Weight for Reliable Scanning

  • Compact Barcode Scan Engine with 1 Year Warranty 1.2m Drop Height and 3.5g Weight for Reliable Scanning
  • Compact Barcode Scan Engine with 1 Year Warranty 1.2m Drop Height and 3.5g Weight for Reliable Scanning
  • Compact Barcode Scan Engine with 1 Year Warranty 1.2m Drop Height and 3.5g Weight for Reliable Scanning
  • Compact Barcode Scan Engine with 1 Year Warranty 1.2m Drop Height and 3.5g Weight for Reliable Scanning
  • Compact Barcode Scan Engine with 1 Year Warranty 1.2m Drop Height and 3.5g Weight for Reliable Scanning
  • Compact Barcode Scan Engine with 1 Year Warranty 1.2m Drop Height and 3.5g Weight for Reliable Scanning
Compact Barcode Scan Engine with 1 Year Warranty 1.2m Drop Height and 3.5g Weight for Reliable Scanning
Ürün ayrıntıları:
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Fiyat: 10
İletişim
Detaylı ürün tanımı
Model Numarası: DE2290H Arayüz Türü: USB
Hızı Tarama: 35CM/S Tarama öğesi: CMO'lar
Çözünürlük: 3mil/0.076mm Görüntü sensörü: 640*480
Tarama modu: Otomatik tarama, sürekli Baskı kontrastı: %20
Boyut: 21,3 mm U *15,50 mm G * 11,50 mm Y Görüş alanı: 41° * 31°
tarama türü: CMOS, Küresel Deklanşör ffc kablosu: 5 cm
düşme yüksekliği: 1.2m Ağırlık: 3.5g
Alan derinliği: 40-530mm
Vurgulamak:

1 Year Warranty Barcode Scan Engine

,

1.2m Drop Height Barcode Scanner Module

,

3.5g Weight Embedded Barcode Scanner

Embedded 1D/2D Barcode Scanning Engine CMOS Intelligent Identification Module
OEM Small High Sensitive Engine 1D/2D CMOS USB TTL Barcode Scanner Module
Compact Barcode Scan Engine with 1 Year Warranty 1.2m Drop Height and 3.5g Weight for Reliable Scanning 0

The DE2290H is a high-performance 300,000 global pixel embedded 2D image module featuring advanced CMOS image recognition technology and intelligent image recognition system.

With excellent reading performance, it can easily read barcodes on various media including paper, merchandise, and digital screens.

The integrated compact design allows for easy installation in a wide range of equipment. Widely used in self-service machines, price checking systems, lockers, and other industrial applications.

Product Specifications
Communication USB (USB-KBW, USB-COM, HID-POS), TTL
Scan Type CMOS, Global shutter
Resolution 300,000 pixel, 640×480
Reading precision ≥3mil/0.076mm (PCS90%, CODE 39)
Depth of field 40mm~530mm (Different barcode range)
Decoding speed 35CM/S
Scan Mode Manual, Continuous, Auto Sense, Command control
Prompt method LED indicator light, buzzer (external circuit)
Field of view 41° × 31°
Scan angle Roll: ±360°, Pitch: ±60°, Skew: ±55°
(Test Conditions: CODE39, 10mil/0.25mm, PCS90%)
Print Contrast Signal ≥20%
Ambient Light Dark environment, indoor natural light
Supported Symbologies
1D Barcodes:
UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5 (Straight 2 of 5), Standard 2 of 5 (IATA 2 of 5), Codabar (NW-7), MSI, GS1 Databar (Omnidirectional, Limited, Expanded), China Post, Tepepen, Febraban, GS1 Composite
2D Barcodes:
QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code
Physical Specifications
Weight Approx. 3.5g
Dimensions 21.3mm (L) × 15.50mm (W) × 11.50mm (H)
FPC Cable Length 5CM (FPC single-sided cable)
Interface Type FPC 12PIN Pitch 0.5
Electrical Specifications
Power Supply DC 3.3V
Current 200mA (Average Work), 95mA (Standby), 38mA (Sleep)
Environmental Specifications
Operating Temperature -20ºC to 50ºC
Storage Temperature -40ºC to 60ºC
Humidity 5% to 95% (No condensation)
Transport 10H@125RPM
Compact Barcode Scan Engine with 1 Year Warranty 1.2m Drop Height and 3.5g Weight for Reliable Scanning 1 Compact Barcode Scan Engine with 1 Year Warranty 1.2m Drop Height and 3.5g Weight for Reliable Scanning 2 Compact Barcode Scan Engine with 1 Year Warranty 1.2m Drop Height and 3.5g Weight for Reliable Scanning 3
Packaging & Shipping
Compact Barcode Scan Engine with 1 Year Warranty 1.2m Drop Height and 3.5g Weight for Reliable Scanning 4
