Name: Cost-Effective Embedded 2D CMOS Barcode Scan Engine with 65cm/S Scan Speed and 3mil/0.076mm Reading Precision
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 25 USD
Availability: InStock

Ana sayfa Ürünler Barkod Tarama Motoru

Cost-Effective Embedded 2D CMOS Barcode Scan Engine with 65cm/S Scan Speed and 3mil/0.076mm Reading Precision

Ürün ayrıntıları:

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	25

İletişim

Detaylı ürün tanımı

Model Numarası:	DE2690D	Arayüz Türü:	USB
Hızı Tarama:	65 cm/sn	Tarama öğesi:	CMO'lar
Okuma hassasiyeti:	3mil/0.076mm	Görüntü sensörü:	1280*480
Baskı kontrastı:	% 15	Boyut:	28,3 mm U* 19,1 mm G * 12,0 mm Y
Depolama Sıcaklığı:	-40 ℃ ila 70 ℃	ffc kablosu:	5 cm
düşme yüksekliği:	1.2m	Ağırlık:	5.5g
Alan derinliği:	70-750mm	Çalışma Sıcaklığı:	-20ºC ila 55ºC
Nem:	%5 ila %95
Vurgulamak:	65cm/S Scan Speed Barcode Scan Engine , 3mil/0.076mm Reading Precision 2D Barcode Scanner Module , 1280*480 Image Sensor Embedded Barcode Reader

Cost-Effective Embedded 2D CMOS Image Reader Module with Megapixel Camera

OEM ODM Mini OCR Passport ID Card Embedded Barcode Scanner 2D Wired Module

A compact, high-performance embedded scanning solution for ID cards, passports, and barcode reading applications.

Product Specifications

Parameter	Details
Weight	5.5g (without cable)
Dimensions	28.3mm L × 19.1mm W × 12.0mm H
Interface	USB, USB-com (requires driver), TTL (USB protocol: Full Speed, USB 2.0)
Light Source	White LED (auto-brightness adjustment) Red aiming LED (525nm wavelength)
CMOS Sensor	1280×800 resolution
CPU	ARM 32-bit processor
Resolution	1D: ≥3mil
Depth of Field	70-750mm (varies by barcode type)
Scan Modes	Manual, Auto, Continuous, Command control
Power Requirements	3.3V, 220mA (operating), 120mA (standby), 40mA (sleep)
Operating Temperature	-20°C to 55°C

Supported Symbologies

1D Codes: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Interleaved 2 of 5, Codabar, and more
2D Codes: QR Code, Data Matrix, PDF417, Aztec, HanXin Code, and more

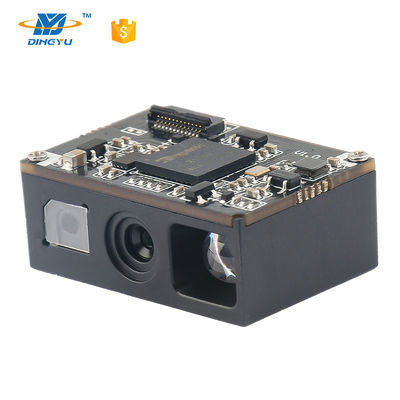

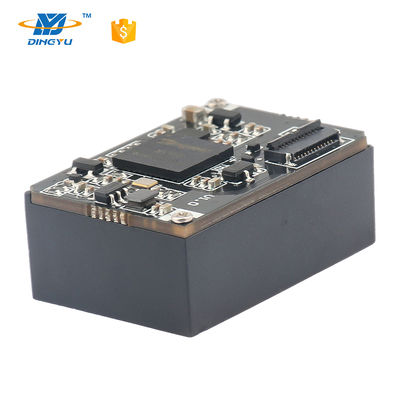

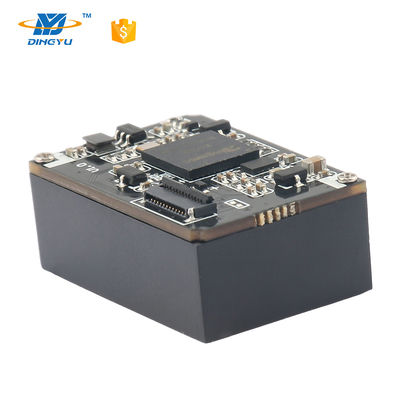

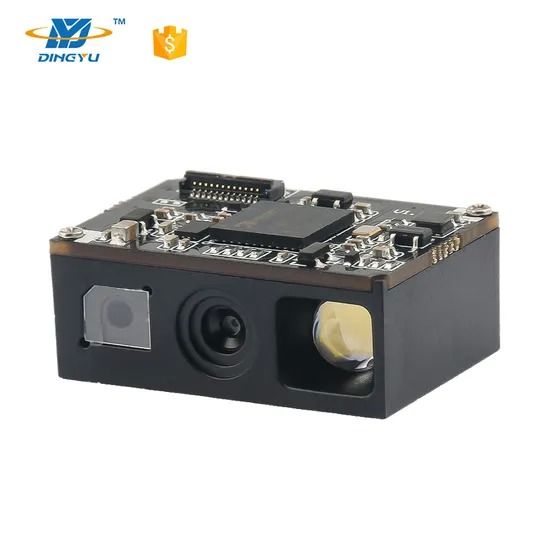

Additional Product Views
