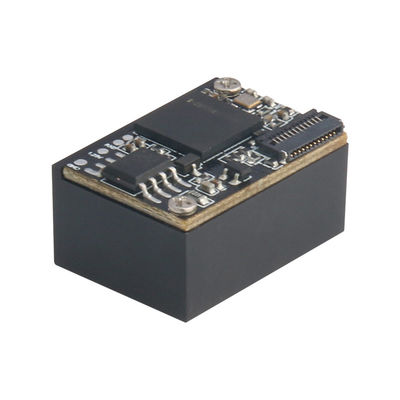

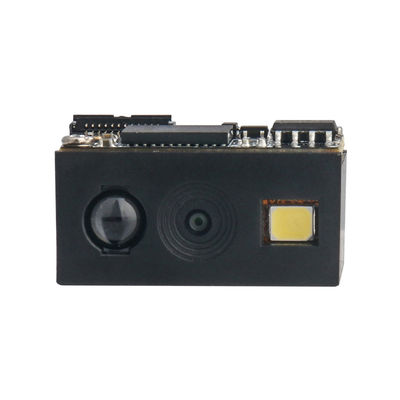

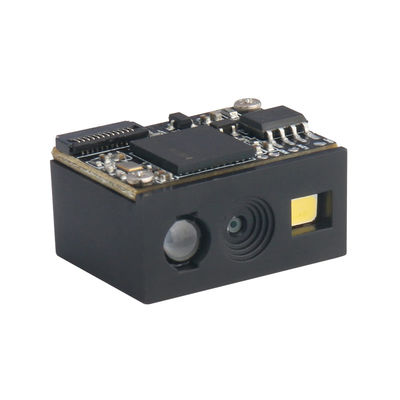

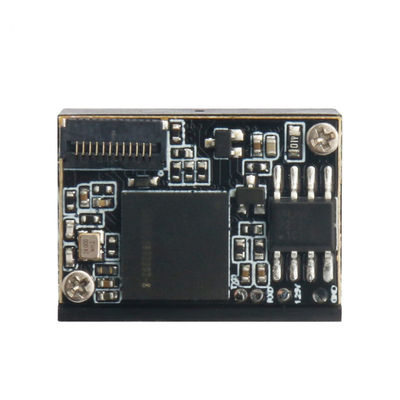

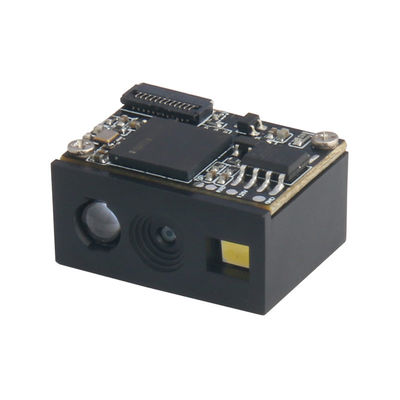

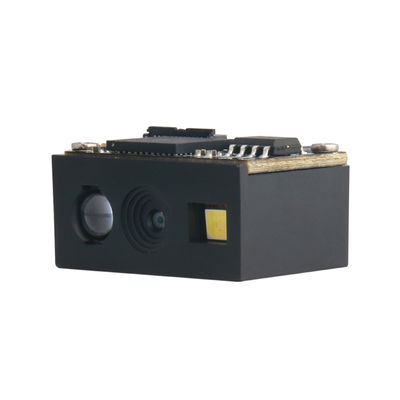

Name: High-Performance 2D Barcode Scanner Module with 3mil/0.076mm Resolution and 640*480 Image Sensor
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 15 USD
Availability: InStock

Ana sayfa Ürünler Barkod Tarama Motoru

High-Performance 2D Barcode Scanner Module with 3mil/0.076mm Resolution and 640*480 Image Sensor

Ürün ayrıntıları:

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	15

İletişim

Detaylı ürün tanımı

Model Numarası:	DE2290D	Arayüz Türü:	USB
Hızı Tarama:	65 cm/sn	Tarama öğesi:	CMO'lar
Çözünürlük:	3mil/0.076mm	Görüntü sensörü:	640*480
Tarama modu:	Otomatik tarama, sürekli	Baskı kontrastı:	%20
Ağırlık:	3.5g	Güç Kaynağı:	DC 3.3V, 200mA Çalışma
Boyutlar:	21,35 mm U 15,50 mm G 11,40 mm Y	ffc kablosu:	5 cm
düşme yüksekliği:	1.2m	Çalışma Sıcaklığı:	-20ºC ila 50ºC
Depolama Sıcaklığı:	-40ºC ila 60ºC
Vurgulamak:	3mil/0.076mm Resolution Barcode Scanner Module , 640*480 Image Sensor Barcode Scanner Module , High-Performance 2D Barcode Scanner Module

2D Embedded QR Code Reader Mini Barcode Scanner Module

The DE2290D is a high-performance 300,000 global pixel embedded 2D image module featuring advanced CMOS image recognition technology and intelligent image recognition system.

With excellent reading performance, it easily scans barcodes on various media including paper, merchandise, and digital screens. Its compact integrated design allows for easy installation in a wide range of equipment.

Ideal for self-service machines, price checking systems, lockers, and other automated applications.

Technical Specifications

Communication	USB (USB-KBW, USB-COM, HID-POS), TTL
Scan Type	CMOS, Global shutter
Resolution	300,000 pixel, 640×480
Reading Precision	≥3mil/0.076mm (PCS90%, CODE 39)
Depth of Field	30mm~550mm (varies by barcode type)
Decoding Speed	65CM/S
Scan Modes	Manual, Continuous, Auto Sense, Command control
Prompt Method	LED indicator light, buzzer (external circuit)
Field of View	41° × 31°
Scan Angle	Roll: ±360°, Pitch: ±60°, Skew: ±55°
Supported Symbologies	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Codabar, MSI, GS1 Databar, China Post, and more 2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code, Japan post, Postnet

Physical Specifications

Weight	Approximately 3.5g
Dimensions	21.35mm L × 15.50mm W × 11.40mm H
FPC Cable Length	5CM (FPC single-sided cable)
Interface Type	FPC 12PIN Pitch 0.5
Power Supply	DC 3.3V
Current	200mA (Average Work), 95mA (Standby), 38mA (Sleep)
