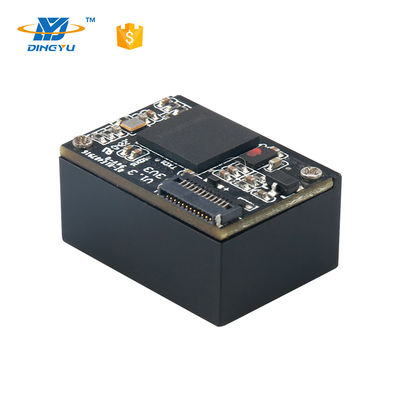

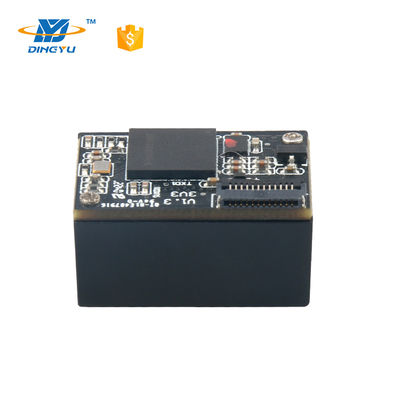

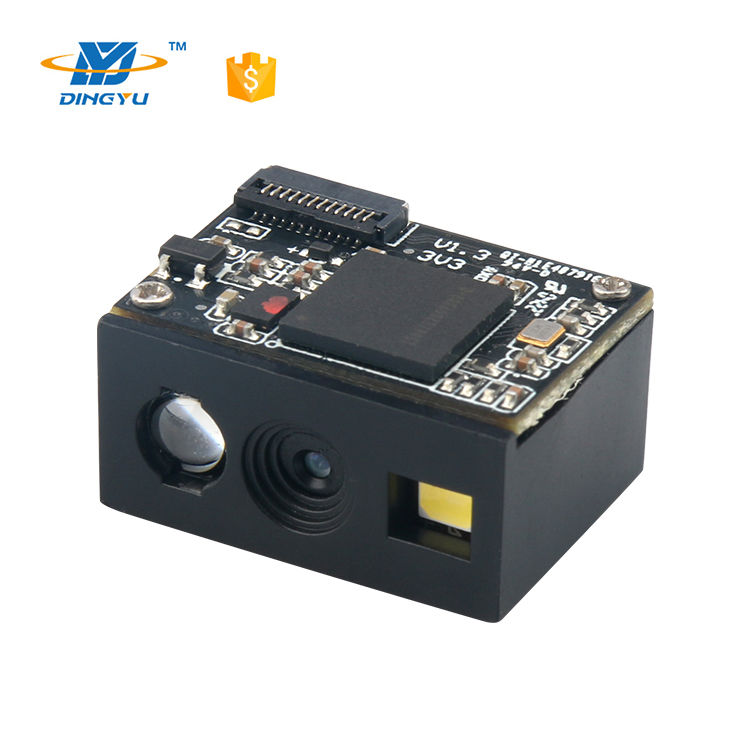

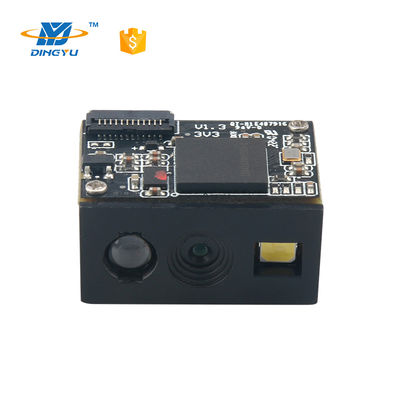

Name: Small High Sensitive 1D 2D Barcode Scanner Module with 300,000 Global Pixel and 640*480 Image Sensor
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

Ana sayfa Ürünler Barkod Tarama Motoru

Small High Sensitive 1D 2D Barcode Scanner Module with 300,000 Global Pixel and 640*480 Image Sensor

Ürün ayrıntıları:

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	10

İletişim

Detaylı ürün tanımı

Model Numarası:	DE2290H	Arayüz Türü:	USB, TTL
Hızı Tarama:	35CM/S	Tarama öğesi:	CMO'lar
Çözünürlük:	3mil/0.076mm	Görüntü sensörü:	640*480
Baskı kontrastı:	%20	Güç Kaynağı:	DC 3.3V
Akım:	200mA Çalışma	ffc kablosu:	5 cm
düşme yüksekliği:	1.2m	Ağırlık:	3.5g
Alan derinliği:	40-530mm	Boyutlar:	21,3 mm U 15,50 mm G 11,50 mm Y
Çalışma Sıcaklığı:	-20ºC ila 50ºC
Vurgulamak:	1D 2D Barcode Scanner Module , 300 , 000 Global Pixel Barcode Scan Engine , 640*480 Image Sensor Embedded Barcode Scanner

OEM Small High Sensitive Engine 1D 2D CMOS USB TTL Barcode Scanner Module

The DE2290H is a high-performance 300,000 global pixel embedded 2D image module featuring advanced CMOS image recognition technology and intelligent image recognition system. With excellent reading performance, it can easily read barcodes on various media including paper, merchandise, and digital screens.

Key Features

Compact design for easy integration into various equipment
High sensitivity CMOS sensor with global shutter
Wide reading range from 40mm to 530mm
Supports both 1D and 2D barcode symbologies
Multiple scan modes including manual, continuous, and auto-sense
Ideal for self-service machines, price checkers, and lockers

Technical Specifications

Parameter	Specification
Communication	USB (USB-KBW, USB-COM, HID-POS), TTL
Scan Type	CMOS, Global shutter
Resolution	300,000 pixel (640×480)
Reading Precision	≥3mil/0.076mm (PCS90%, CODE 39)
Depth of Field	40mm~530mm (varies by barcode type)
Decoding Speed	35CM/S
Scan Modes	Manual, Continuous, Auto Sense, Command control
Field of View	41° × 31°

Supported Symbologies

1D Barcodes: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Codabar, MSI, GS1 Databar, China Post, Tepepen, Febraban, GS1 Composite

2D Codes: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code

Physical Specifications

Weight: Approximately 3.5g

Dimensions: 21.3mm (L) × 15.50mm (W) × 11.50mm (H)

FPC Cable Length: 5CM (single-sided)

Interface: FPC 12PIN Pitch 0.5

Electrical Specifications

Power Supply: DC 3.3V

Current: 200mA (Average Work), 95mA (Standby), 38mA (Sleep)

Environmental Specifications

Operating Temperature: -20ºC to 50ºC

Storage Temperature: -40ºC to 60ºC
